New Defender 4” Stainless Steel Snorkel V4
Elevate your Defender's performance and appearance with our 4" Stainless Steel Snorkel. Not only does it add toughness to the front end, but it also safeguards your engine by delivering clean air during off-road escapes, whether you're navigating dusty trails or tackling deep water crossings.
- Snorkel is custom-made to be the perfect fit for your New Defender.

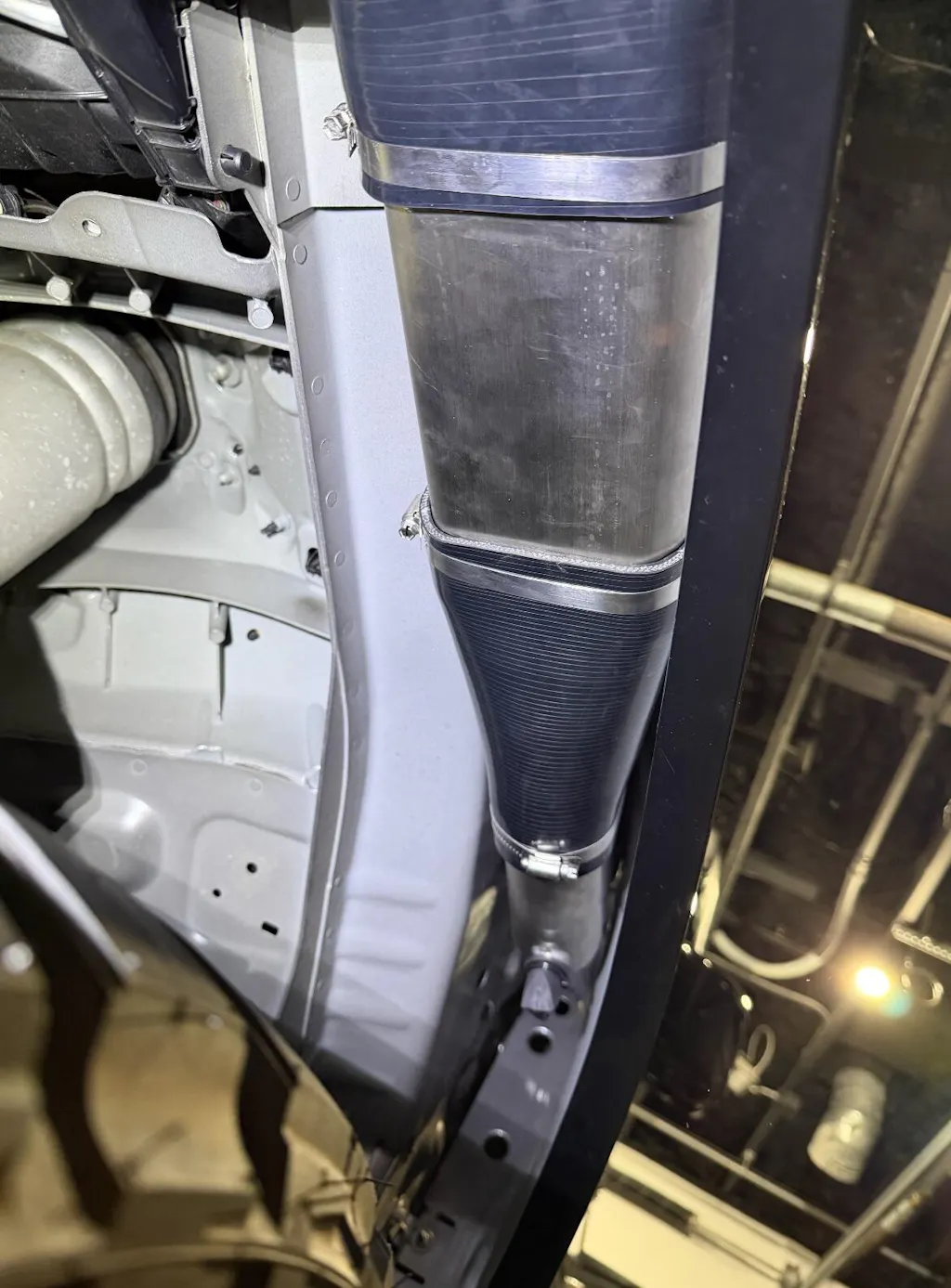

- Fully sealed to airbox design (only snorkel on the market that is fully sealed to airbox and replaces factory elbow into airbox which is not waterproof).
- Made out of high-quality 316 grade stainless steel
- Meticulous welding through-out all the components
- Back purged to create best flow for air
- 4" diameter all the way to limit any restriction to factory airbox
- Water separating and exiting technology to ensure excess water doesn't reach the airbox if it enters the inlet, during extremely heavy rain.
- Comes in Powder-coated Black
- All fitting components come included (Silicone Pipe, Hose clamps and fasteners)
- Instructions come in the box as well as a template for cutting
- Uses Factory LR pillar mounting positions.
- Designed by NDM and 100% Australian made!
- Version 4 updated February 2026
- V4 Update: Duck Bill (seen in last picture) drains any water that gets into the snorkel!
Suits
NOW SUITS NEW DEFENDER OCTA
All New Defenders L663 2020 onwards
V8/OCTA Defenders require the Dual Snorkel option (425/500/525/635)
Ships From
Express from AU (approx. 7 days worldwide)
Country Of Manufacture
Australia
Checkout shipping rates
Worldwide
Lead Time
In stock. Dispatch within 1-2 business days.
Weight
12kg/26lbs (Single) & 20kg/44lbs (Dual)
Please note
If you currently have a factory defender raised air intake this will be removed and the cut-out for the top plastic mount will be covered by the top A pillar mount of the new snorkel design, most dealers may have spare vents from snorkel installations available and may even give you one however if they cannot be found at a dealer they can be ordered from the LR parts department.
Instructions
Customer Reviews

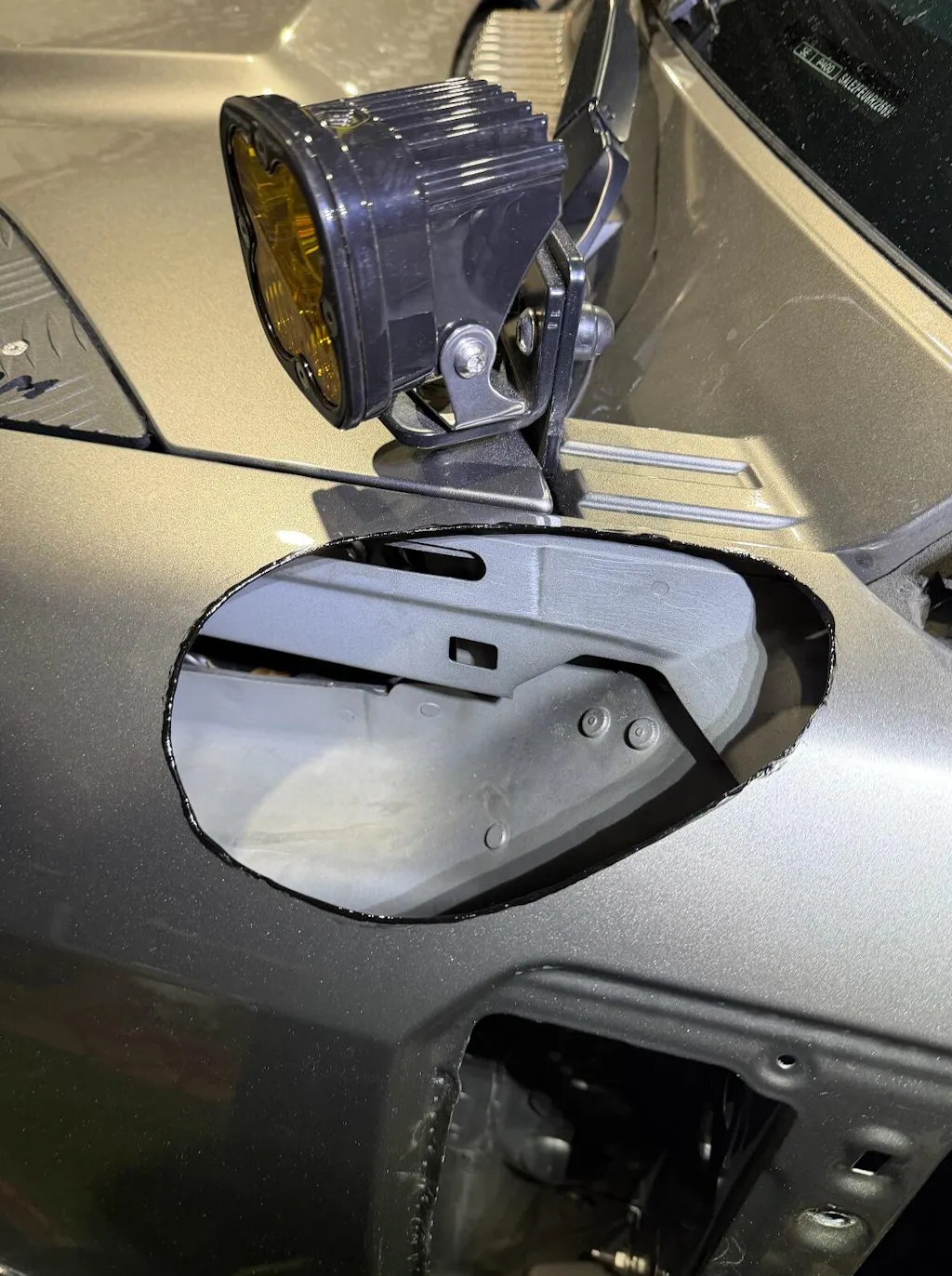

Don’t be fooled, the JLR part that most folks call a “snorkel” is in fact a raised air intake, and not a snorkel. It is not watertight and neither is the connection between the airbag and the pipe that joins the two. Good for dust, good for some splashes maybe but certainly not for deep water. And I must say, the raised air intakes might look fine on some defenders but once yours is truly kitted out they just feel… cheap. THIS, however, is a proper snorkel. Extremely high quality, totally sealed all the way to the airbox. When cutting the hole just take your time, I did mine with a Dremel. The template they give you is quite good, just don’t rush putting it on and know that the hole is intentionally small so you’ve got room to cut more finely later. A note about fitting: do NOT underestimate how tricky it is to get in there and tighten all of those couplers. Everything is perfectly cut to fit in there, but there's just not much room especially if you have big hands. Keep some lube on the couplers, get creative with ways to reach up in there with extensions to tighten the hose clamps and you'll get it. Worth the tight fit for a true 4" intake. Rock solid, it’s hit a few big branches already and doesn’t have a scratch on it. Gives a lot more confidence crossing those particularly deep waters, and I don’t mind hearing the nice suction when I get on the throttle either. Absolutely fine piece of hardware.
