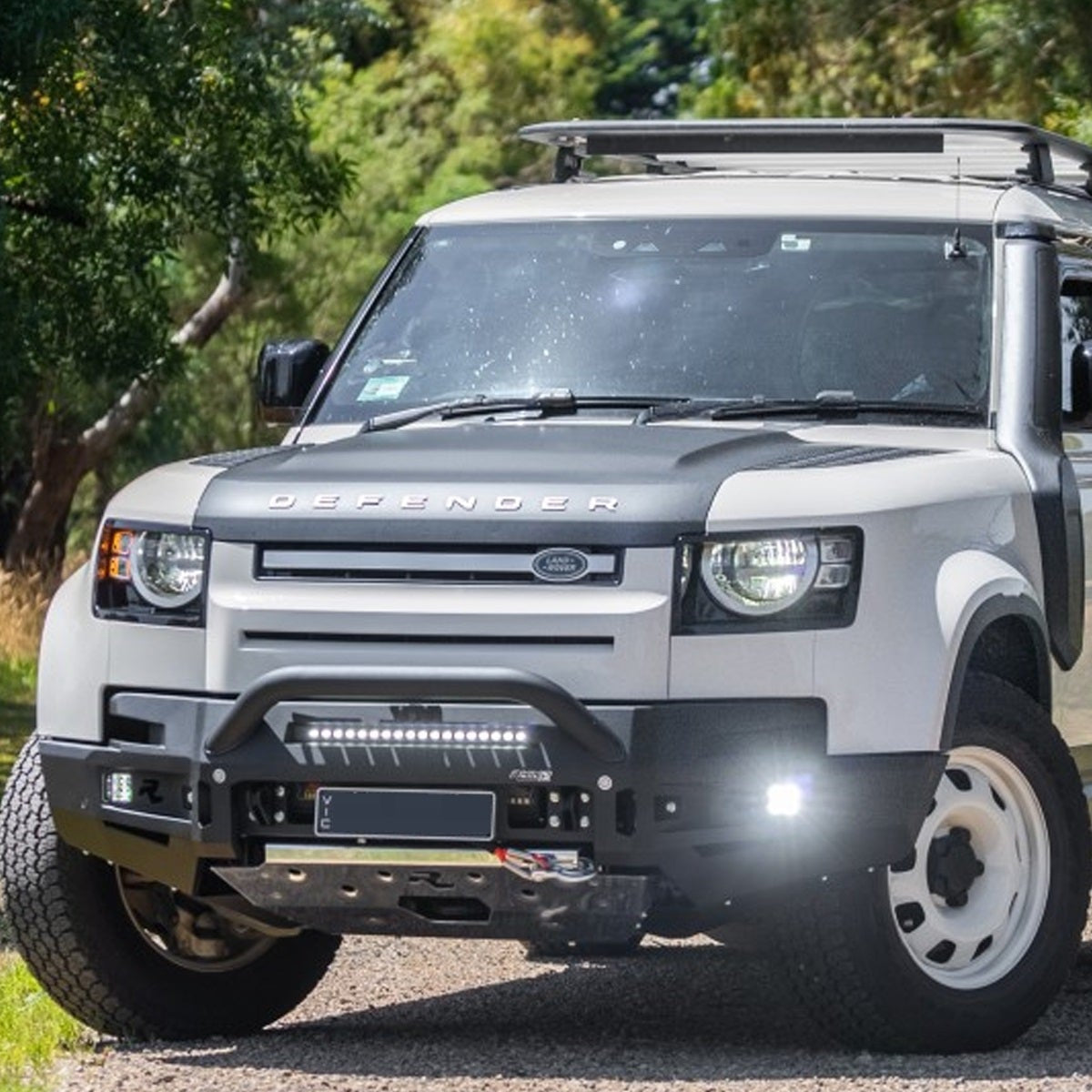

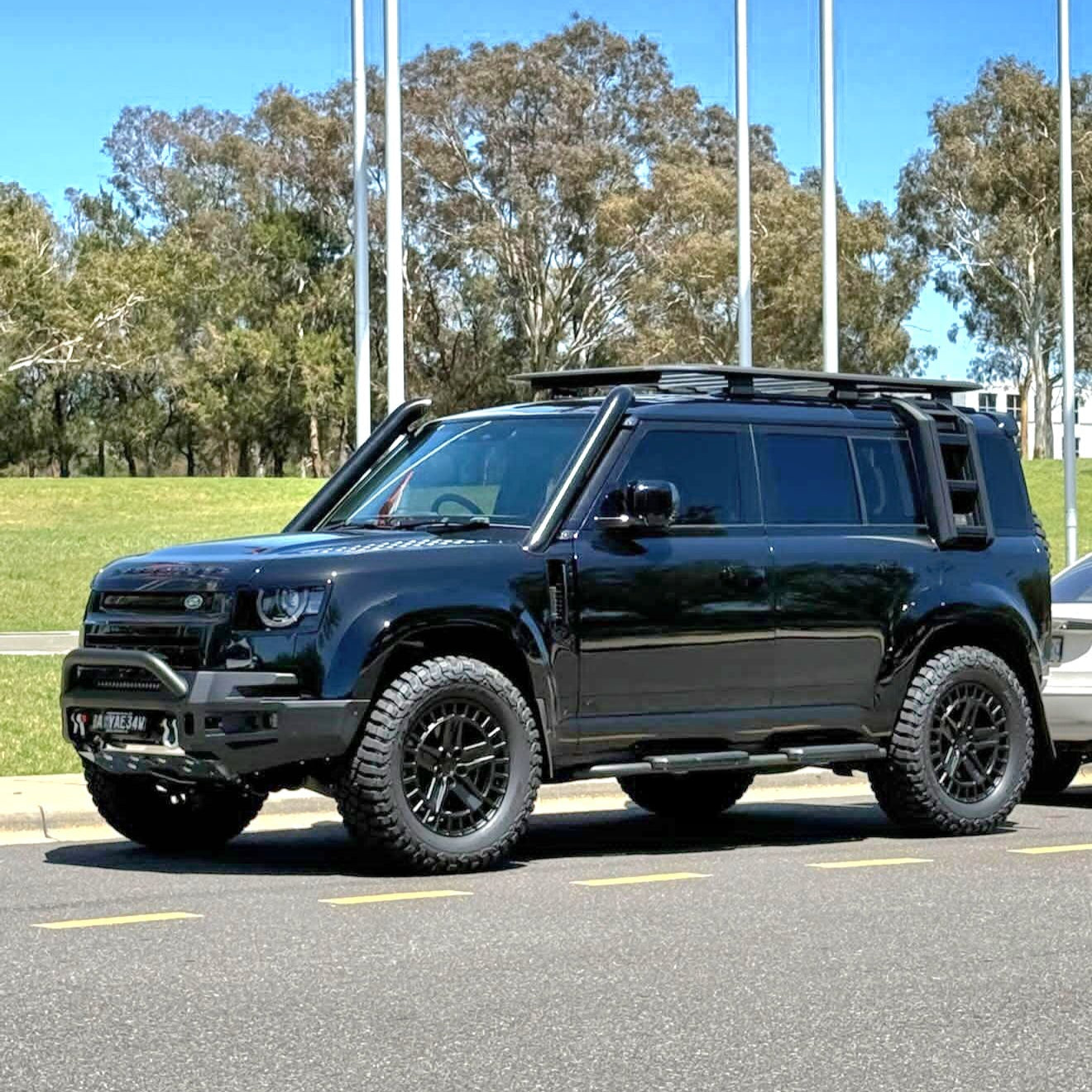

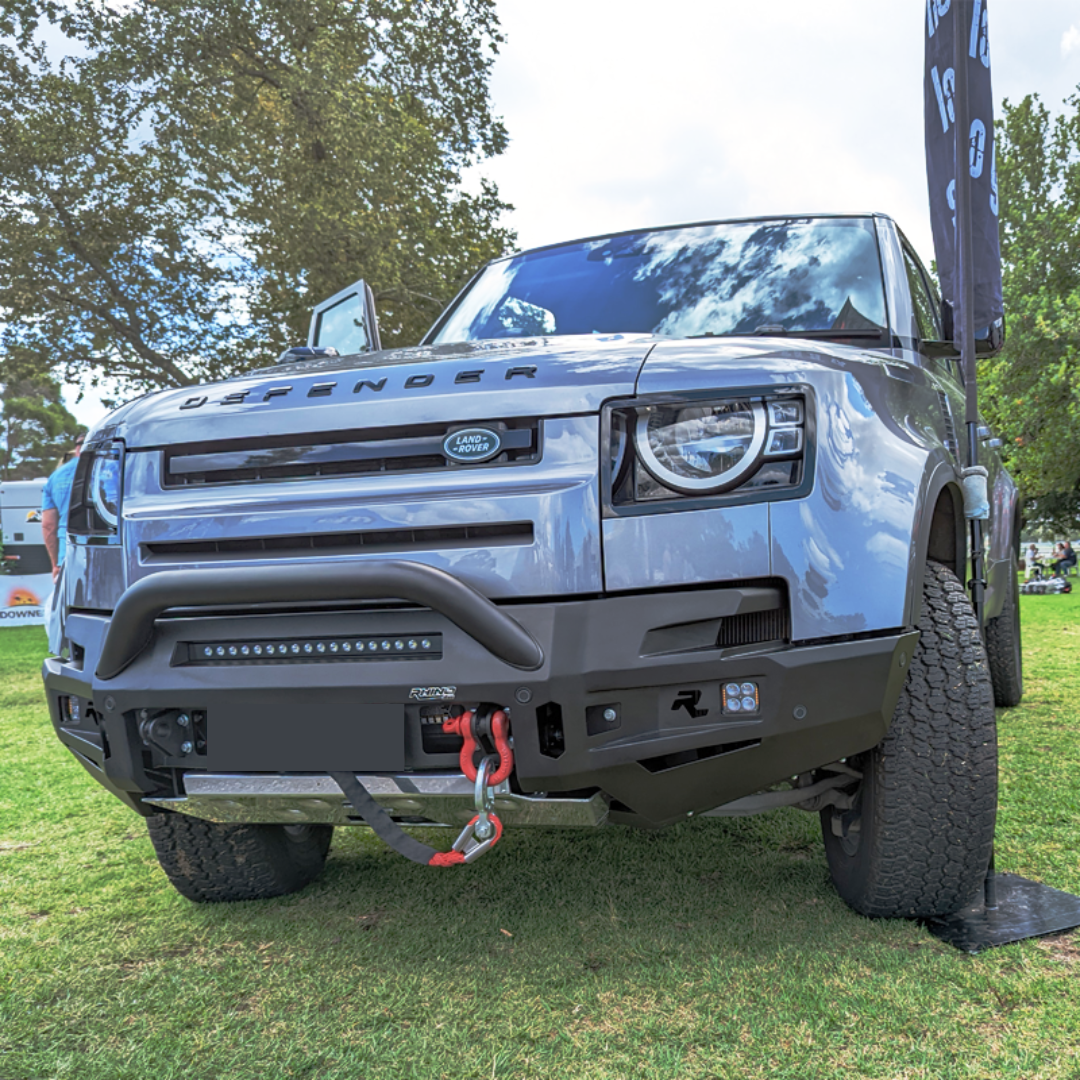

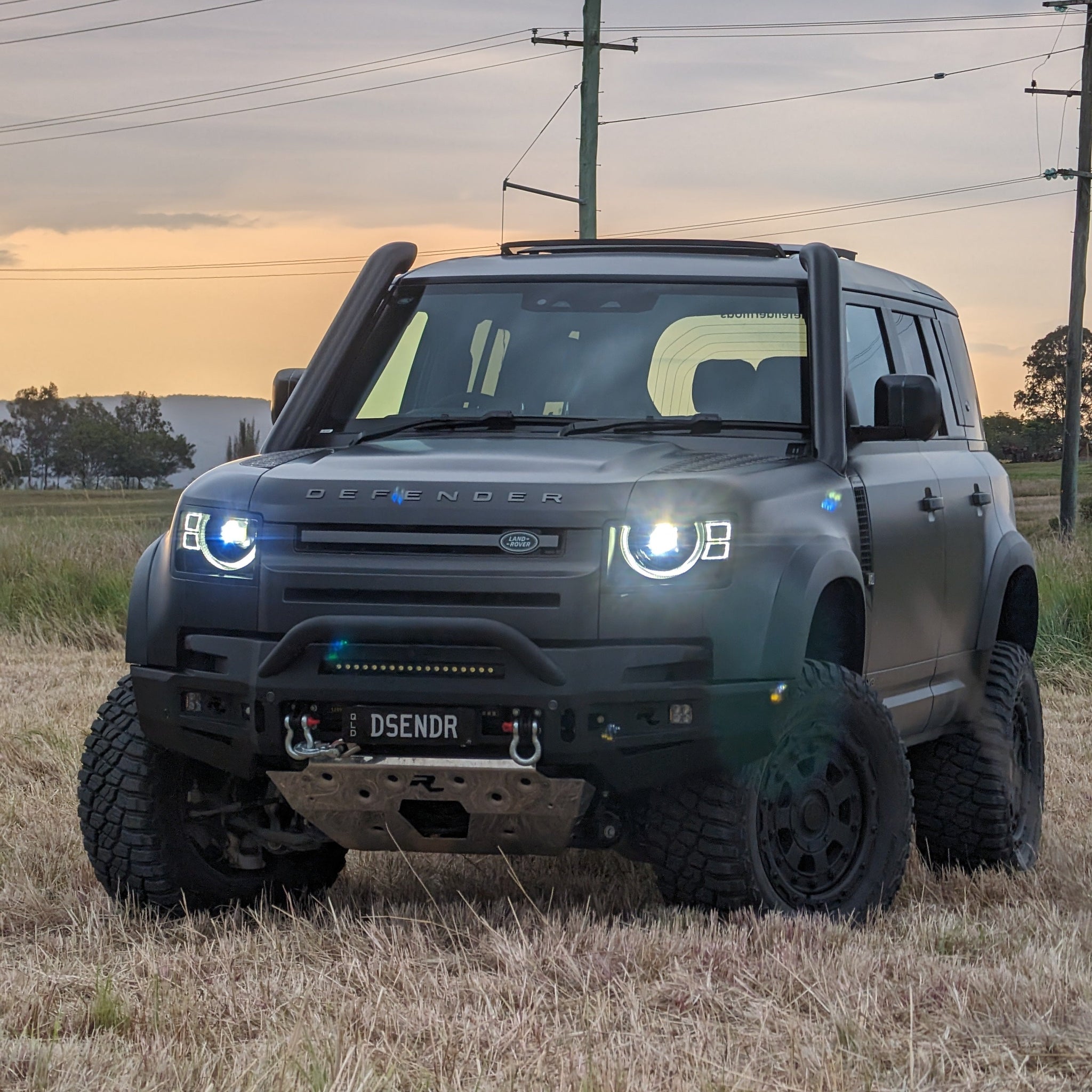

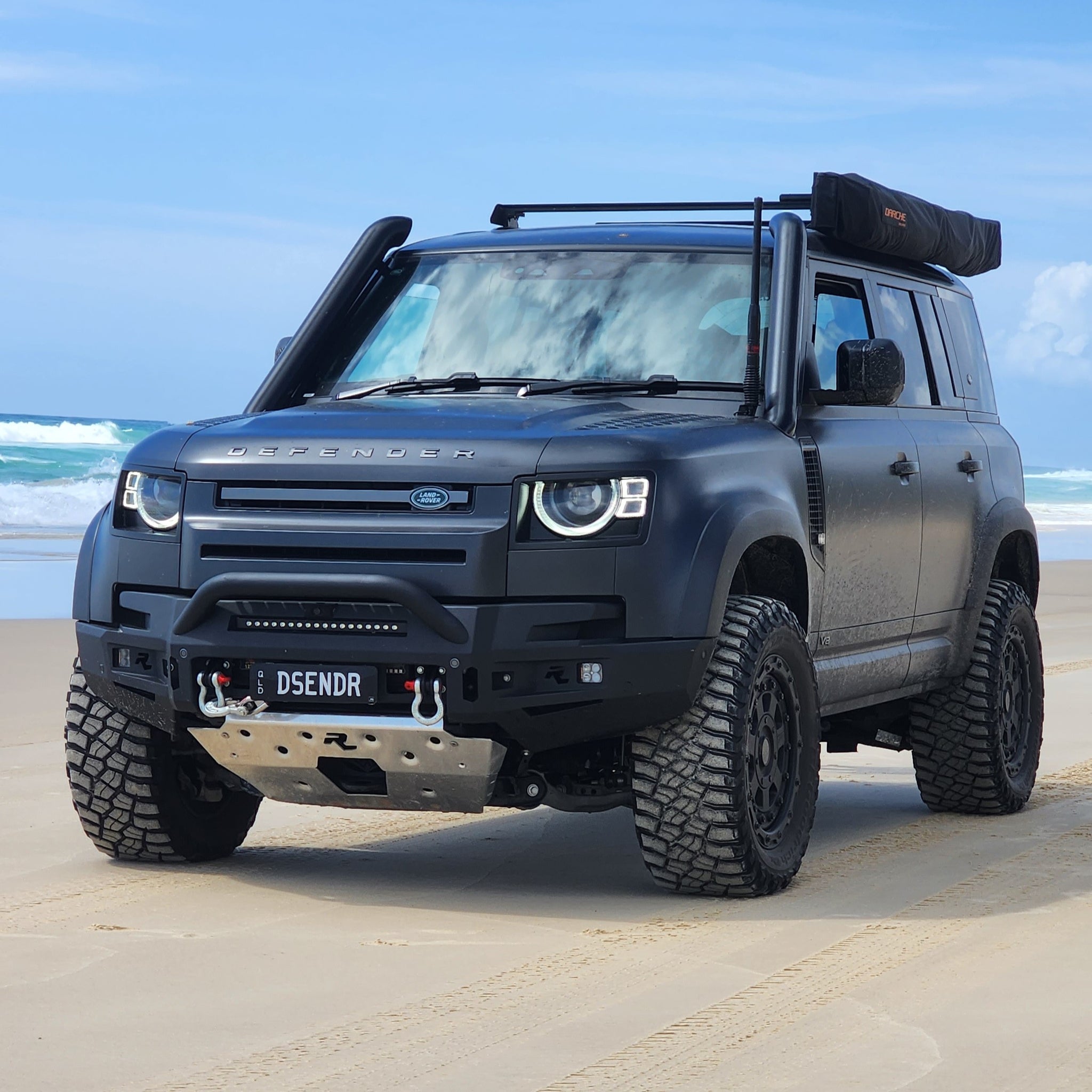

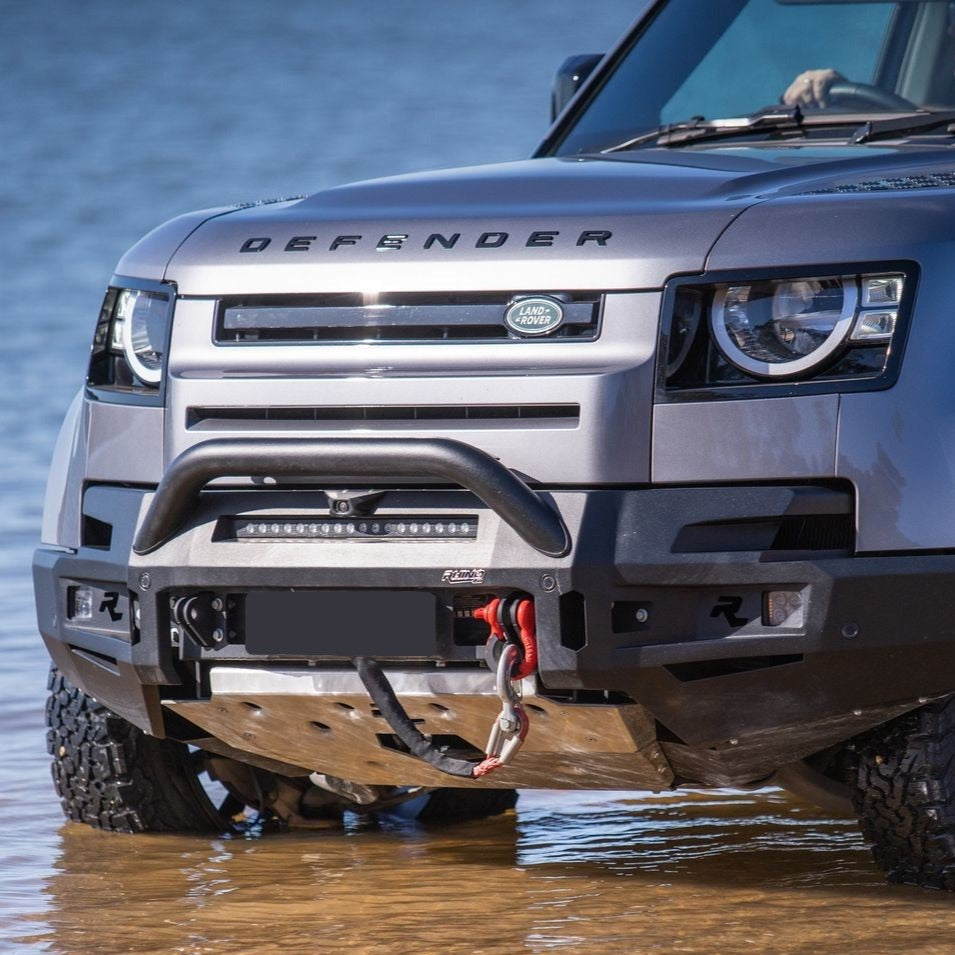

New Defender Rhino 4x4 3D Sport Front Winch Bar
Are you looking for an effective Winch Bar for the front of your New Defender with the ability to mount a winch and also protect around the side coolers? Maybe you are looking for ways to improve the overall rugged aesthetic of your New Defender? In any situation, the Rhino 3D Sport Winch Bar is the perfect choice for you and your New Defender!
This Rhino 3D Sport Front Winch Bar is the answer!
- Finished in matte black powder coating as standard
- Airbag and safety compliant with the high Australian ADR standards, ensuring all safety systems, lights etc. will work as standard
- Built tough with a 3mm and 6mm steel construction to handle anything you have to throw at it
- Allows bigger tires due to the angle of the bar in front of the wheel
- Cooling ducts direct air to coolers
- Tough 5mm Aluminium bash plate
- Includes as standard rated recovery points and 40w LED driving lights with fully independent wiring loom included
- Fully compatible with all parking sensors and speed sensors
- Winch compatible
- Flip up number plate bracket with light bar compatible mid-section to suit the included super slim 20" light bar
- Total weight above the standard Bullbar and optional winch is 75kg after removal of parts not needed after installation. Air suspension auto compensates for this and HD springs are avail for the front from LR dealers to compensate for Bullbar installs
- Manufactured and Designed by Rhino4x4
Optional Lightbar specifications:
- Powerful 7400 lumens
- High Quality Anodised CNC’d Aluminium Housing
- IP68 Water and Dust rating to stand up to mud and water crossings
- Included Heavy Duty Mounting brackets
- High quality DT electrical connectors to prevent water ingress
- Includes complete independent wiring loom for lightbar + wiring loom for fog lights.
Simply the best new defender winch bar on the market that you and your defender deserves!
Suits
All New L663 Defenders, 90, 110 and 130 from 2020 onwards (Does not include OCTA)
Ships From
Australia
Country Of Manufacture
Argentina
Shipping Rates at Checkout
Domestic Shipping - Flat rate for metro areas
Lead Time
Contact for stock quantity
Weight
70kgs (Bar Only)
Weight added after removal of standard parts (kg approx) 48kg/105lbs (Bar minus factory parts only)
Please note
CANbus module is needed for legal wiring in some countries where additional light bars must be on the high beam switch. (Sold separately)
For very extreme hot environments, we recommend not installing lower fog lights for additional cooler ventilation if coolers are present on your model. Additional holes or openings may be drilled around the logo area as needed.
Does not include: Shackles, Fairlead, CANbus module or Winch, for compatible sizes, refer to our winch dimensions (winch sold separately)
Compatible winches:
Carbon Scout Pro - 12000lb Winch V3 & other similar spec winches
